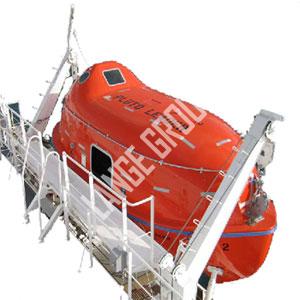

| Product Name | Pivot Gravity Davit | |||||

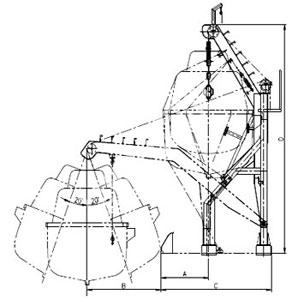

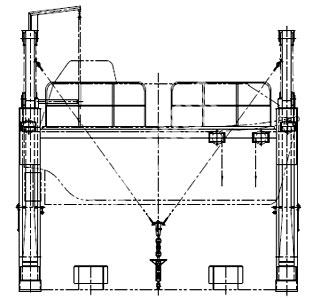

| Product No. | S.W.L | Main Dimensions(mm) | Suitable Boat | |||
| KN | A | B | C | D | ||
| MDEE050-PG001 | 47 | 1200 | 2000 | 2600 | 5200 | 5m-6m |
| MDEE050-PG002 | 57 | 1250 | 2000 | 2650 | 5500 | 6m-7m |
| MDEE050-PG003 | 67 | 1300 | 2200 | 3100 | 6000 | 7.5m |
| MDEE050-PG004 | 87 | 1600 | 2680 | 3500 | 6600 | 8m-8.5m |
| MDEE050-PG005 | 105 | 1700 | 2800 | 3600 | 6700 | 9m |
| MDEE050-PG006 | 138 | 1900 | 3250 | 4500 | 8000 | 10m |
| MDEE050-PG007 | 170 | 2300 | 3600 | 5000 | 8500 | 12m |
