SINGLE HORIZONTAL LEAD SHEAVE

Product No.

Sheave
Diameter

Wire Rope
Size

Safe Work
Load(Pounds)

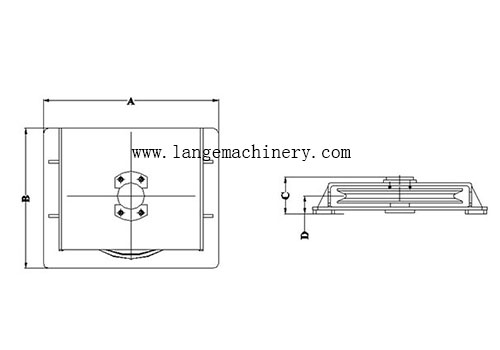

Dimensions

A(inch)

B(inch)

C(inch)

D(inch)

MOME102-SH001

6inch

1/2inch

4000

9 1/2

8 1/2

2 3/4

1 1/8

MOME102-SH002

8inch

5/8inch

8000

12

10 3/4

3 1/4

1 3/8

MOME102-SH003

10inch

3/4inch

12000

14 1/2

13

3 3/4

1 3/4

MOME102-SH004

14inch

7/8inch

20000

19

17

4 1/2

2 1/4
