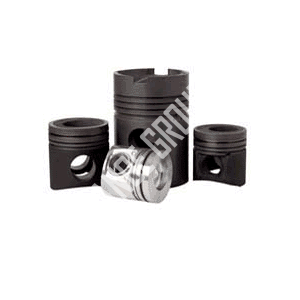

| Piston Series for Daihatsu | ||||||||||||
| Product No. | OEM No. | Engine Model & Description | Cylinder No. | Cylinder Dia | Head Type No. | Piston | Ring | Pin | Remark | |||
| Long | Comp. Dist | Comp | Oil | Dia | Long | |||||||
| ACRM030-DA001 | 13101-87207 | L-38 360 cc | 2 | 62.0 | 014 | 71.0 | 32.0+5.0 | 1-2.0 k | 17.0 | 53.0 | 20.5 x 1.4 R | |
| S-38 P | 2-2.0 | |||||||||||
| ACRM030-DA002 | 13101-87306 | V-22H DG | 4 | 88.0 | 031 | 95.0 | 50.5 -5.0 | 1-2.5 | 1-4.0 | 26.0 | 70.0 | 29 x 1.6 R |
| 13101-87309 | DG 2530 cc | -1.0 | 1-2.0 | |||||||||
| ACRM030-DA003 | 13101-87701 | S-40 547 cc | 2 | 71.6 | 141 | 63.0 | 30.5 +0.5 | 2 -1.5 | 1-2.8 | 18.0 | 62.0 | |
| AB10.20.30. | ||||||||||||
| ACRM030-DA004 | G 1000 1000 cc | 3 | 76.0 | 080 | 60.5 | 28.5 -1.5 | 2-1.5 | 1-2.8 | 18.0 | 60.0 | ||
| ACRM030-DA005 | CB 1000cc | 3 | 76.0 | 185 | 60.5 | 28.5 -3.7 | 2-1.5 | 1-2.8 | 18.0 | 60.0 | ||
| ACRM030-DA006 | 13101-87314 | DL 2765 cc | 4 | 92.0 | 195 | 95.0 | 50.5 -1.2 | 1-2.5 | 1-4.0 | 26.0 | 70.0 | 29 x 1.4 R |
| 13101-87316 | 1-2.0 | |||||||||||
| ACRM030-DA007 | 13211-87324 | DL NEW -28 | 4 | 92.0 | 195 | 95.0 | 50.5 -1.2 | 1-2.5 | 1-4.0 | 28.0 | 75.0 | 30.1 X 1.2W |
| 13211-87325 | -5.0 | 1-2.0 | RTW28 | |||||||||
| 13101-87325-000 | ||||||||||||
| 13101-87324-000 | ||||||||||||
| ACRM030-DA008 | 13101-87246-000 | ED, MIRA | 3 | 66.6 | 010 | 56.5 | 28.5 -6.3 | 1-1.2 | 1-2.8 | 18.0 | 51.0 | |
| 650 CC | 1-1.5 | |||||||||||
| ACRM030-DA009 | 13101-87727 | CL | 4 | 76.0 | 195 | 70.5 | 38.5 -0.7 | 1-2.0 k | 1-3.0 | 21.0 | 63.5 | |
| 13101-87725 | -1.2 | 1-1.5 | ||||||||||
| ACRM030-DA010 | 13101-87720 | CL-T | 4 | 76.0 | 195 | 70.5 | 40.5 -1.1 | 1-2.0 k | 1-3.0 | 23.0 | 64.5 | |
| -1.7 | 1-1.5 | |||||||||||
