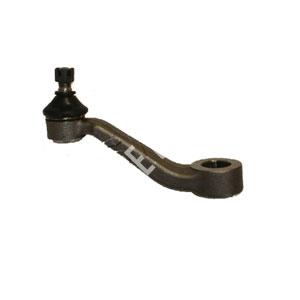

| Pitman Arm For Toyota | ||||
| Product Name | Pitman Arm | |||
| Product No. | ASTS130-TO005 | |||
| Parameter |
Length(mm) |
212 | ||
|
Inner Diameter(mm) |
30 | |||
|
Number of Teeth |
48 | |||
|
Overall Height(mm) |
76 | |||
|
Fitted Diameter(mm) |
15 | |||
|
Out Thread (mm) |
14*1.5 | |||
| ASHIKA No. | OEM No. | Model | Year | |
| 52-02-235 |
45401-35190 45401-35220 |
TOYOTA 4 RUNNER (_N130) 3.0 Turbo-D (KZN 130) | 10-1993 / 03-1996 | |
| TOYOTA 4 RUNNER (_N130) 3.0 V6 (VZN 130) | 07-1990 / 11-1995 | |||
| TOYOTA 4 RUNNER (_N130) 2.4 (RN61) | 08-1987 / 03-1996 | |||
| TOYOTA 4 RUNNER (_N130) 2.7 i | 11-1995 / - | |||
| TOYOTA 4 RUNNER (_N130) 3.4 i | 11-1995 / - | |||
