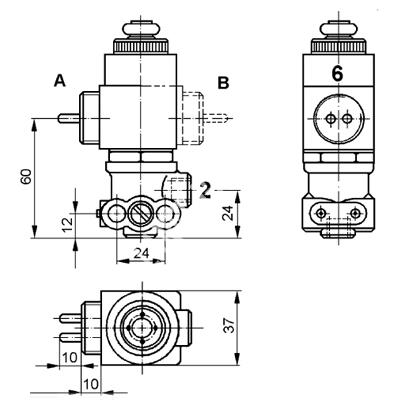

| Product Name | SoleNoid Valve | |
| Product No. | ABRS810-RE012 | |
| Parameter | Operating Pressure(Bar) | 1 ... 11 |
| Type | Normally Open | |
| OperatingTemperature Range | -40¡æ~+80¡æ | |
| Port Thread | M 12x1.5 | |
| Port 4 | M 27x1 | |
| Duty Cycle | Continuous (100%) | |
| Protection Type(IP Code) | IP 6K9K /6K7 | |
| Grade of insulation | ||
| Nominal Diameter | 4 | |
| Voltage(V) | 24 | |
| Rated Current(A) | 0.69 | |
| Remark | - | |
| Wabco No. | OEM No. | Application |
| 472 173 700 0 | 1504924 | DAF |
| 0009970912 | Daimler | |
| A0009970912 | ||
| 655776 | Dennis | |
| 5101508000 | Foden Trucks | |
| 41016829 | Iveco | |
| 503135472 | ||
| 5010046405 | Renault Trucks | |
