Brake Control Mechanisms >> Pressure Limiting Valve >> Renault >> Pressure Limiting Valve For Renault
  | ||
| Product Name | Pressure Limiting Valve | |
| Product No. | ABRS809-RE013 | |
| Parameter | Max. Operating Pressure(Bar) | 10 |
| Delivered pressure(Bar) | 1.8¡À0.2 | |
| p1(Bar) | 8 | |
| Range of adjustment(Bar) | 1.2 ... 1.8 | |

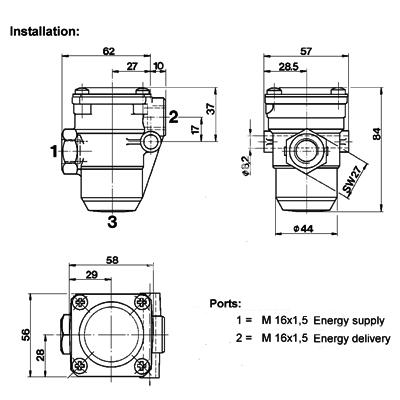

| Port Thread | M 16x1.5 | |
| Nominal diameter | 10 | |
| Remark | p1 max. = 20 bar if p1 = variable | |
| Wabco No. | OEM No. | Application |
| 475 015 300 0 | 1238744 | DAF |
| 1506194 | ||
| 501056467 | Renault Trucks | |
| 4787788 | Volvo | |
