Product Name | Relay Emergency Valve | |
Product No. | ABRS807-NE005 | |
Parameter | Max.Operating Pressure(bar) | 10 |
Operating Temperature Range | -40¡æ ~ +80¡æ | |
Predominance(bar) | adjustable: 0 to 1 | |

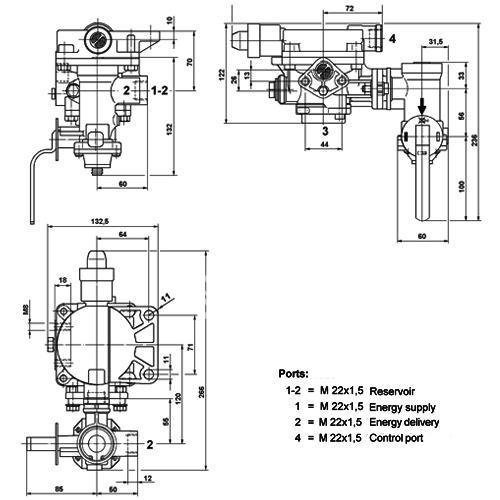

Port 1 | M 22x1.5 | |
Port 2 | M 22x1.5 | |
Port 1-2 | M 22x1.5 | |
Port 4 | M 22x1.5 | |
Port 41,42 | - | |
Remark | Combination of 971 002 150 0 and manual LSV 475 604 011 0 | |
Wabco No. | OEM No. | Application |
971 002 570 0 | 1518260 | DAF |
200211 | Goldhofer | |
945079 | Krone | |
945148 | ||
07101000 | Neoplan |
