| Product Name | Relay Emergency Valve | |
| Product No. | ABRS807-NE003 | |
| Parameter | Max.Operating Pressure(bar) | 10 |
| Operating Temperature Range | -40¡æ ~ +80¡æ | |
| Predominance(bar) | adjustable: 0 to 1 | |

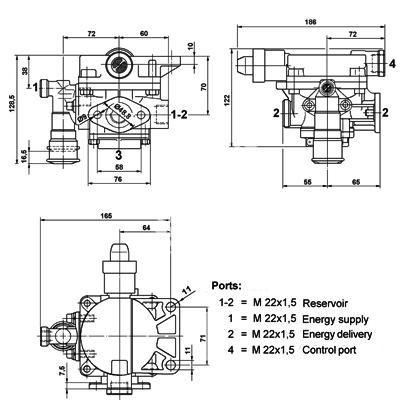

| Port 1 | M 22x1.5 | |
| Port 2 | M 22x1.5 | |
| Port 1-2 | M 22x1.5 | |
| Port 4 | M 22x1.5 | |
| Port 41,42 | - | |
| Remark | Combination of 971 002 150 0 and release valve 963 001 012 0. Alternative: 971 002 701 0 is the same except without flange for manual LSV | |
| Wabco No. | OEM No. | Application |
| 971 002 531 0 | 1518259 | DAF |
| 5021208564 | Renault Trucks | |
