| Product Name | Relay Emergency Valve | |
| Product No. | ABRS807-NE001 | |
| Parameter | Max.Operating Pressure(bar) | 10 |
| Operating Temperature Range | -40¡æ ~ +80¡æ | |
| Predominance(bar) | adjustable: 0 to 1 | |

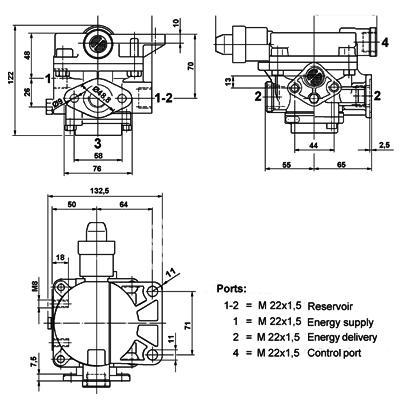

| Port 1 | M 22x1.5 | |
| Port 2 | M 22x1.5 | |
| Port 1-2 | M 22x1.5 | |
| Port 4 | M 22x1.5 | |
| Port 41,42 | - | |
| Remark | Alternative: 971 002 300 0 is the same except without flange for manual LSV | |
| Wabco No. | OEM No. | Application |
| 971 002 150 0 | 0243107700 | BPW |
| 0830550 | DAF | |
| 830550 | ||
| 830550 | Leyland-Daf | |
| 82580000060 | Man | |
| 07110000 | Neoplan | |
| AG46729002 | Renualt Trucks | |
