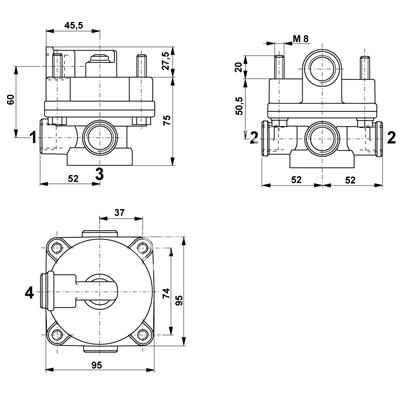

| Product Name | Relay Valve | |
| Product No. | ABRS801-RE003 | |
| Parameter | Operating Pressure(bar) | 10 |
| Operating Temperature Range | -40¡æ ~ +80¡æ | |
| Port 1 | M 22x1.5 | |
| Port 2 | M 16x1.5 | |
| Port 3 | - | |
| Port 4 | M 16x1.5 | |
| Port 21,22 | - | |
| Port 41,42 | - | |
| Wabco No. | OEM No. | Application |
| 973 001 220 0 | 661694 | DAF |
| 0024299244 | Daimler | |
| 0024299344 | ||
| 0024299444 | ||
| A0024299244 | ||
| 8283889000 | Evo-Bus | |
| 42027999 | Iveco | |
| BBU7382 | Leyland-Daf | |
| 81521166033 | Man | |
| 81521166035 | ||
| 81521166036 | ||
| 81521166037 | ||
| 81521166047 | ||
| 81521166049 | ||
| 81521169033 | ||
| 5001000317 | Renualt Trucks | |
| 5001000316 | ||
| 637207530 | Van Hool | |
